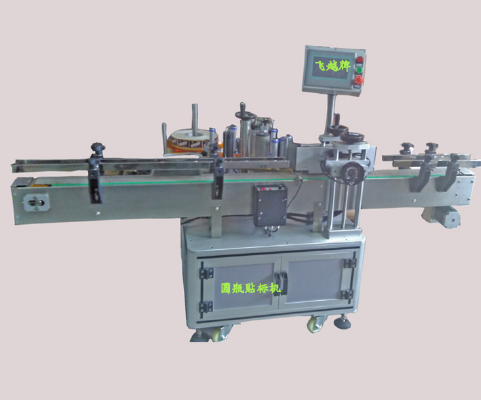

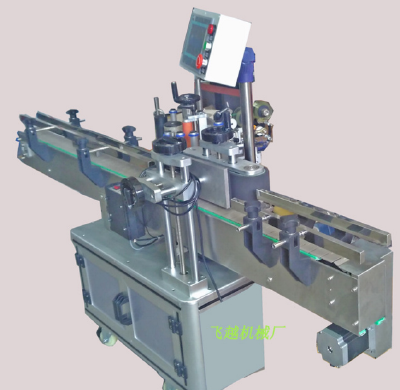

Automatic round bottle labeling machine
Functional characteristics:
This equipment by PLC microcomputer control system, powerful memory function, can preset 50 group of labeling parameters, the operation simple and quick; mark by mutual inductance step into motor control, to ensure that a standard speed and roll bottle speed synchronization; imported frequency control to ensure the stability and reliability of the machine.
Basic use:
Can be used for a variety of cylindrical objects, small taper round bottle of the week / week and a half, front and back double labeling, such as canned food, cosmetics round bottles, medicine bottles and bottle labeling; another ribbon coding machine, labeling and print production batch number and other information.
Technical parameter:
Labeling accuracy: 1 mm
Applicable label range: square label: high 10 ~ 100 (mm) long 10 ~ 300 (mm)
Circle line tag: diameter: 10-100 (mm)
Scope of application: circular products: diameter: 20-90 (mm) high 15-300 (mm)
Production capacity: 100 ~ 150 bottles / min
Rated voltage: 220V/50Hz
Power of the whole machine: 300W
Dimensions: 1710 x 950 x 300 (mm) (long x w * h)
Weight of the whole machine: 160Kg
